SCCM: How to capture image

by on Jan.21, 2008, under Microsoft, SCCM/SMS2003

Here are the steps for image capture with SCCM:

  1. First you have to make a Capture Media as described in here.
  2. Remove PC from the domain
  3. Create a folder called sysprep in boot partition

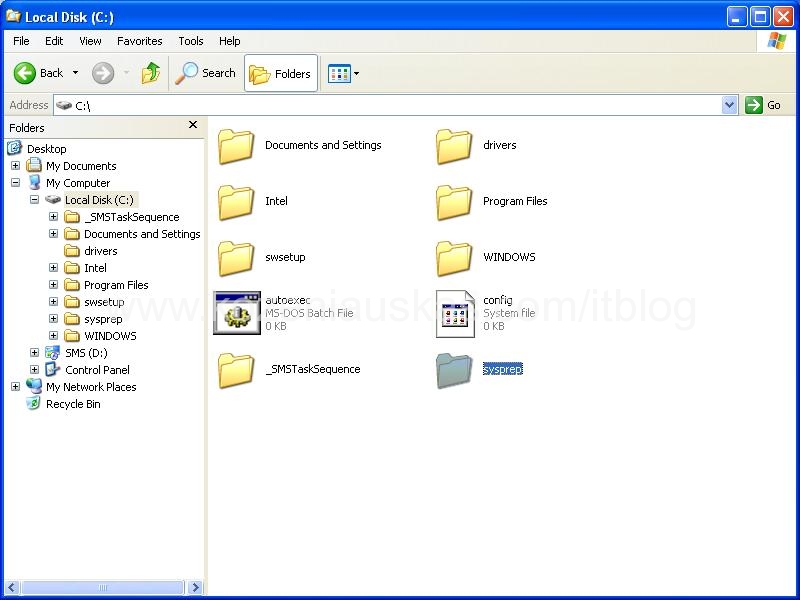

    Create sysprep
  4. Extract and copy the files from deploy.cab from OS media to sysprep folder
  5. Put the capture media into CD/DVD drive. Wait until Image Capture Wizard starts and click Next
    Image capture wizard 1

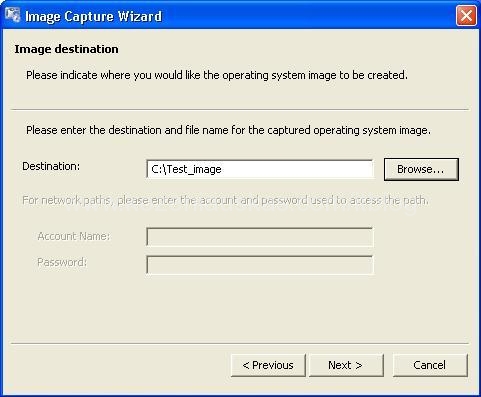

  6. Enter the destination and file name where you want your image to be created. You can create directly on a network share but then you have to provide login details for it.
    Image capture wizard 2

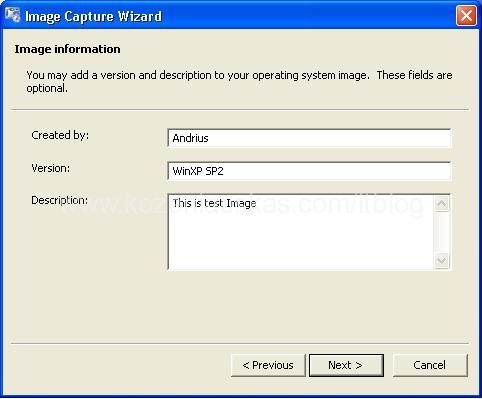

  7. Enter Image information
    Image capture wizard 3

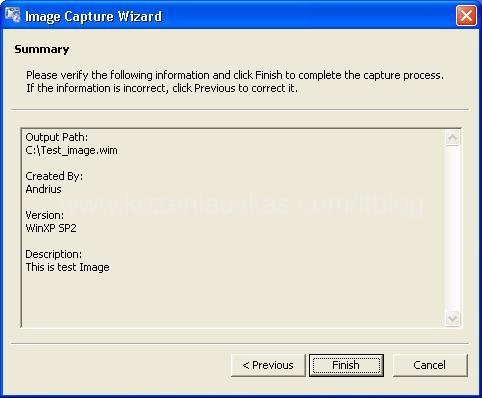

  8. Click Finish on the Summary screen
    Image capture wizard 4

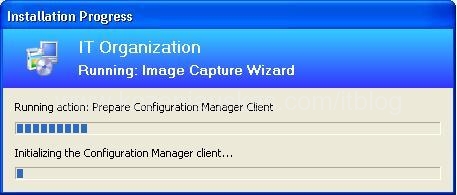

  9. Image capturing should start now.
    Image capture wizard 5

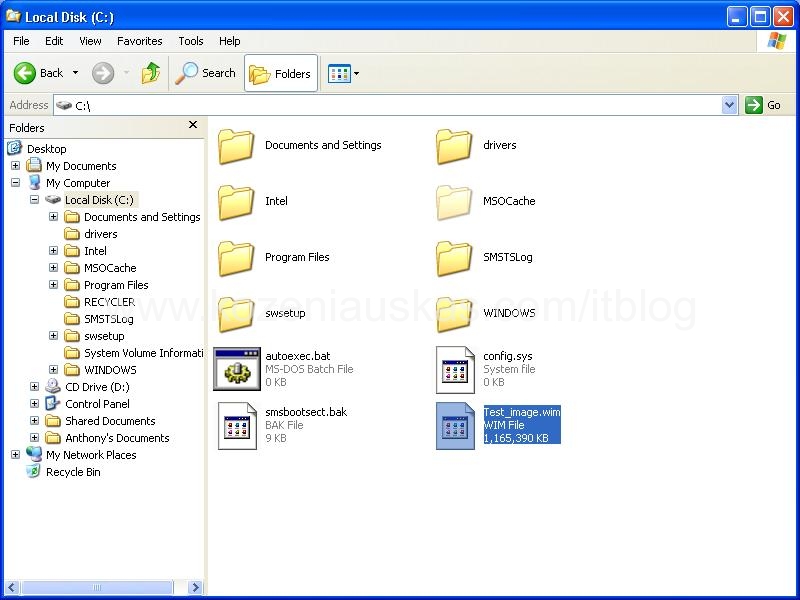

  10. At first Capture wizard will prepare the OS for imaging. After that PC will reboot and it will copy the image to the provided location. When copying is finished it will display a dialog screen saying that image capture was successful. Press OK and wait until PC reboots. Because the PC was syspreped you will have to provide all the information(name, serial key,regional settings etc.) as the PC was just installed. After setup is finished you should login and locate your image file.
    Image capture wizard 6
:, , , , , ,
